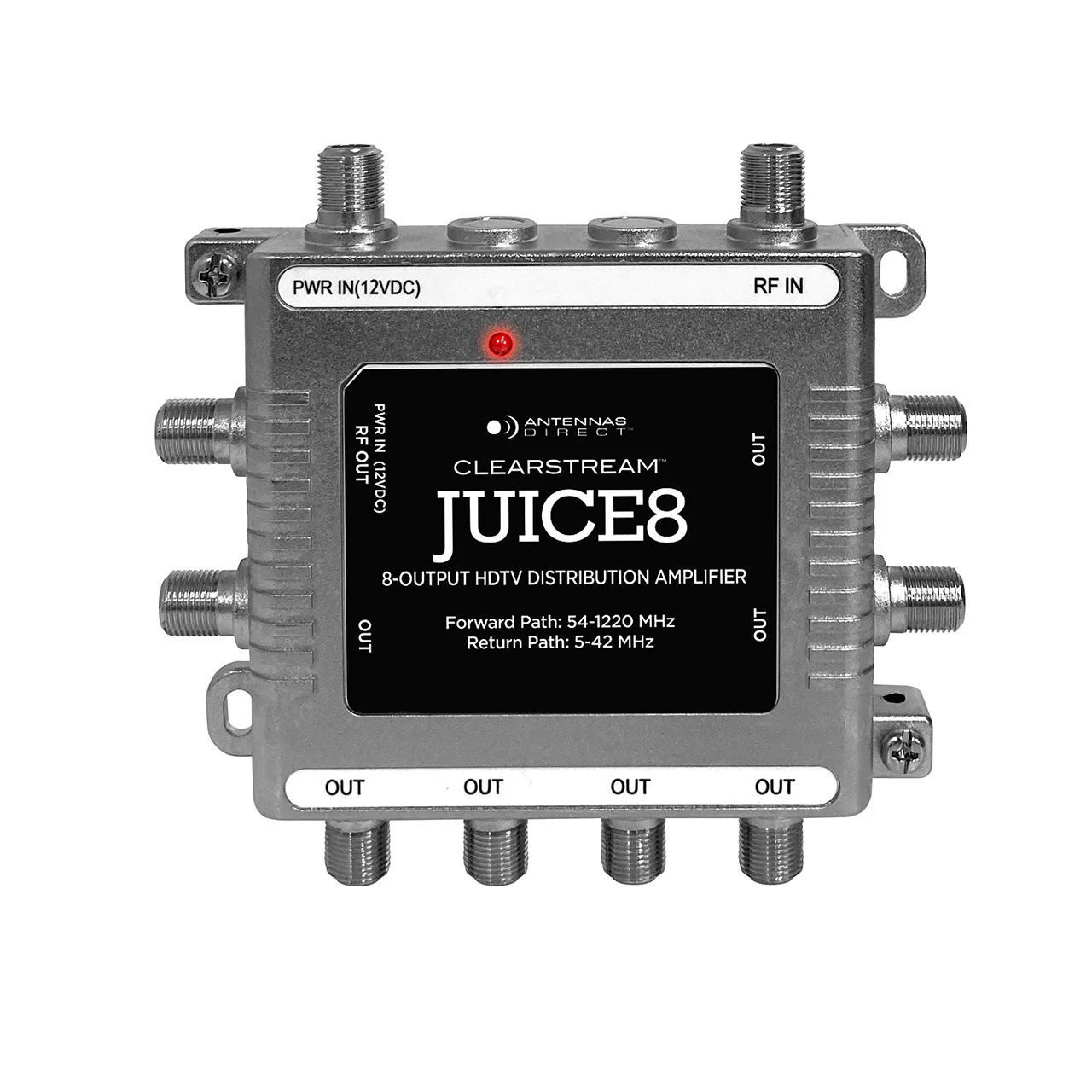

Antennas Direct JUICE8 formerly: CDA8/DAX8 8 Way TV/CATV Distribution Amplifier

Distributing one antenna's signal to multiple TVs and long coaxial cables (50 ft. or more) between your antenna and your TV will result in a certain amount of signal loss. Distribution amplifiers counter this loss by increasing the overall signal strength so the coaxial cable coming from the antenna provides consistent TV reception throughout your installation. Made using professional-grade, high-performance materials, the DAX 8-Output Distribution Amplifier can be used in both home and business installations where as many as eight TVs need reception from one antenna.

Eight Output Ports – Split your antenna’s signal to 8 TVs. Boost signal strength for TV reception throughout the home.
Compatible with HDTV, CATV, analog, and digital distribution applications.
Precision machine-sealed housing provides protection against dust ingress and water splashes.
Excellent surge protection on all ports.
Zinc die-cast housing provides shielding from electrostatic discharge.
Compact size for indoor use. Can be used outdoors under an eave.
Supports ATSC 3.0, NextGen TV, and UHD 4K, 8K broadcast signals.

Specifications:

Model: JUICE8
UPC: 817848012276
Availability: Usually Ships in 24 Hours
Dimensions: 4.25"H x 4.5"W x 0.75"D
Compatibility: Indoor / Outdoor antenna installations
Forward Frequency Range: 54 - 1000 MHz
Return Path Frequency Range: 5 - 42 MHZ
Gain: 6.5 dB per port
Noise Figure: Typically less than 3 dB
Isolation: 20 dB typical
Max Output Level (rated output level): 15 dBmV @rated input
Max Input Level (rated input level): 10 dBmV, 77 channels
Passive Return: 11.5 dB typical insertion loss
Operating Temperature: -40 °C to +60 °C
Connector: 75-ohm F-Type
Power Supply Output: 12v DC, 300 mA
Assembled Weight: 6 oz.
Color: Silver
Previous versions: DAX8, CDA8

Regulatory Compliance: FCC-15B

Includes:
12v DC Power Adapter, 40" High-Performance Coaxial Cable, 2 Wall Screws, 2 Grounding Screws

Warranty:
90-Day warranty on parts

PreAmps & Distribution Amps

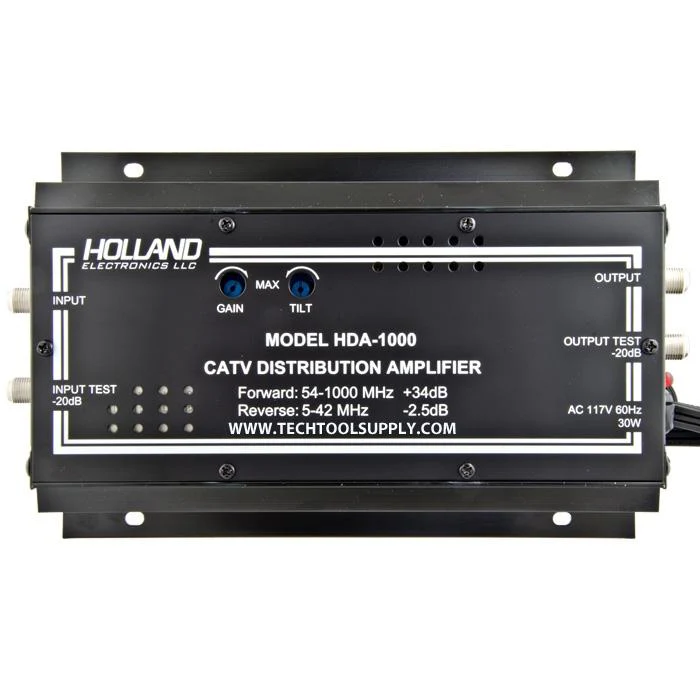

Holland HDA-1000, distribution amplifier, 36dB gain, reverse channel
